Need help wiring output jack

View previous thread :: View next thread
   Forums Archive -> The Vault: 2007Message format

Randy22
Posted 2007-06-25 11:27 PM (#94612)
Subject: Need help wiring output jack


Joined:
April 2003
Posts: 159

Location: Pewaukee, WI
Hi! I just got a '93 1860 (FET3 preamp), and it's missing the jack. I need to know where the 3 wires attach; there's the shield, a black wire and a red wire. I'm sure the shield will go to the sleeve, so I need to know which wire goes to the tip and which wire goes to the switching connection.

Is this making sense? I bet Jason would know.
Top of the page Bottom of the page
keven
Posted 2007-06-26 8:28 AM (#94613 - in reply to #94612)
Subject: Re: Need help wiring output jack


Joined:
February 2004
Posts: 70

Location: kansas
I just finished wiring up a reverb spring tank to a stereo headphone preamp; (also working on adding a blend control to balance between the guitar reverb(wet) with the dry guitar output).
Anyway, the red wire(+) should go to the tip(+).

Do you have a third-connection on the socket for turning off the battery power when the plug is removed? Might want to consider having it wired up with that, too?
Top of the page Bottom of the page
MWoody
Posted 2007-06-26 8:45 AM (#94614 - in reply to #94612)
Subject: Re: Need help wiring output jack



Joined:
December 2003
Posts: 13935

Location: Upper Left USA
I have no idea how they keep all the electrons and mojo inside the fence but here's a Plan view of the corral.
Top of the page Bottom of the page
cliff
Posted 2007-06-26 9:01 AM (#94615 - in reply to #94612)
Subject: Re: Need help wiring output jack


Joined:
March 2002
Posts: 14840

Location: NJ
". .I have no idea how they keep all the electrons and mojo inside the fence . ."

It's all FM.
Top of the page Bottom of the page
Waskel
Posted 2007-06-26 9:42 AM (#94616 - in reply to #94612)
Subject: Re: Need help wiring output jack



Joined:
February 2005
Posts: 11837

Location: closely held secret
The ranch hands are all cosmic cowboys.
Top of the page Bottom of the page
Joyful Noise
Posted 2007-06-26 11:02 AM (#94617 - in reply to #94612)
Subject: Re: Need help wiring output jack


Joined:
March 2004
Posts: 629

Location: Houston, Texas
Just don't let the magic smoke escape!
Top of the page Bottom of the page
Thanksforallthefish
Posted 2007-06-26 11:17 AM (#94618 - in reply to #94612)
Subject: Re: Need help wiring output jack
Joined:
November 2004
Posts: 1374

Originally posted by Joyful Noise:
Just don't let the magic smoke escape!
usually means the bad jin has awakened.. :(

Glenn
Top of the page Bottom of the page
Randy22
Posted 2007-06-26 3:13 PM (#94619 - in reply to #94612)
Subject: Re: Need help wiring output jack


Joined:
April 2003
Posts: 159

Location: Pewaukee, WI
Yes Keven, I have a jack with a switching connection. I've tried red to the tip and black to the switching, and vice-versa with no success. I'm not sure of the wiring order though, and hoped someone who had actually done one of these would chime in.
Top of the page Bottom of the page
BruDeV
Posted 2007-06-26 4:08 PM (#94620 - in reply to #94612)
Subject: Re: Need help wiring output jack


Joined:
January 2003
Posts: 1498

Location: San Bernardino, California

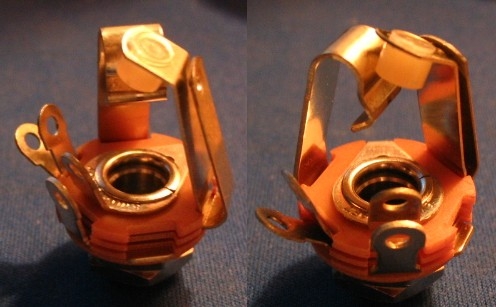

Shield goes to the two inner lugs.
Black to outer left lug.
Red to outer right lug.

If you don't have this type contact the factory.
1-800-552-4681
Top of the page Bottom of the page
Randy22
Posted 2007-06-26 5:45 PM (#94621 - in reply to #94612)
Subject: Re: Need help wiring output jack


Joined:
April 2003
Posts: 159

Location: Pewaukee, WI
Thanks for the quick reply! I have an older jack, and John Budny is sending me a new one. I'll double check my solders to make sure they aren't sloppy and shorting across. Or maybe my older jack is bad.
Top of the page Bottom of the page
